DOPERR

 DOPERR buatan Grissoles France by Albert Dubert, model pertama 1946 hingga tahun 1950 an , body semua aluminum

Abu Cardinal 33 CDL , Special Presentation

Reel buatan sweden  tahun 1992 , special edition warna hitam dengan warna emas 24 k pada handel , bail, side cover screw dan metal rim on push button spool, reel ini datang bersama kotak kayu, susah nak dapat , reel ini keluar sebanyak 1000 biji , 500 pertama bersama abu/garsia dan ambassadeur golden collection , reel ini marked pada foot GC... contoh GC 333 ( GC golden collection ) banyak cerita berkenaan reel abu/sweden , ada yang kata dari japan juga ada yang kata part dari japan di buat di sweden, tapi banyak reel ini di buat di MIZUHO COMPANY OF JAPAN ada juga reel ini dibuat semula pada 2003 dan di perkenalkan pada 2004 tiada  s/n pada foot hanya ada 900 biji je kata orang.

Rel SAP MER-703--france

Reel NAUTILUS B2 Brev. Made in Italy

Model tahun 1950 an

Italy

The Nautilus Co. By

P.Piccinini of Mantova

Banyak model dikeluarkan sehingga tahun 1970 an

Dam Quick MDS Royal

Model Tahun 1994 , Sederhana warna hitam dan emas terdapat MDS 2500, 3500 , 4500 dan 5500

Reel ini limited edition dengan Walnut Bbox dan model terakhir buatan Germany

D.A.M Quick Royal M.D.S.

Magnetic - Drag - System

MADE IN GERMANY

The first of its kind!

M.D.S Drag System

D.A.M Engineering : Rigid mechanisms replaced by magnetic fields!

All conventional drag systems used for playing fish with fixed-spool reels are based on the principle of mechanical friction, ie. brake discs are pressed against each other. However, there is a fundamental law of physics which states that static friction requires more strength to be overcome than dynamic friction. This means that considerably more power is needed in order to move a static spool than to simply maintain its movement.

The Crucial moment!

When a fish suddenly races off, conventional friction drags are already set to maximum effectiveness - their braking power is considerably higher than the power that was actually determined and set by pulling out some line rather slowly. When using standard gear, this is not so important, but if you are using light, fragile tackle, your line will probably break as soon as your first big fish tries to break away.

What a difference the M.D.S. Magnetic Drag makes!

Magnetic drag power never changes. Your spool starts running very smoothly the moment there is a pull on the line. This effect is supported by a minimum-material spool that reduces the natural inertia even more. By the way, the spools' multi-hole design is common to all M.D.S. reels manufactured by D.A.M.

D.A.M. High Tech!

The special magnets serving as the reel's 'motor' have been moulded into a transparent and homogenous, heavy-duty material which is barely touched by the adjacent clutch disk. Only when high and maximum drag forces occur when using heavy tackle, is the highly sensitive drag tension supported by a fine-tunable friction-drag mechanism. This magnetic drag technology for fixed-spool reels is unique and provides our Quick Royal M.D.S. reel and our new Quick Exquisite M.D.S. series with reliable precision to ensure maximum safety and many hours of enjoyable fishing.

DE Pat. No 3543514

US Pat. No 4946115

GB Pat. No 2221003

Quick Royal M.D.S.

Magnetic Drag System

The world's first fixed-spool reel with a magnetic drag system! (Patent Pending)

You'll feel the difference as soon as the fight begins - and you'll love it! The Quick Royal's unique magnetic drag is unbelievably smooth and sensitive, and starts running without any jerking at all.

This means unbeatable safety when playing a fish - especially when using fine and extremely fine lines. The M.D.S. drag system cushions even the most unexpected and sudden runs - as smoothly and quietly as can be, with no jerking at all. A completely new fighting feeling!

Naturally, our D.A.M. engineers did not select a plastic housing when designing this world novelty; instead they used a salt water-resistant light metal for maximum longevity.

Many parts are 18 carat gold-plated or anodized for protection against salt water.

Art. No.

1165 425

1165 435

1165 440

1165 450



Quick Royal

2500

3500

4500

5500



Weight g

350

360

450

490



Ratio

1 : 5.0

1 : 5.0

1 : 4.25

1 : 4.25



Line retrieve cm

58

64

61

69



Line capacity

mm/m

mm/m

mm/m

mm/m



0.18 / 200

0.25 / 180

0.30 / 210

0.35 / 210



0.20 / 150

0.30 / 130

0.35 / 160

0.40 / 180



0.25 / 100

0.35 / 100

0.40 / 120

0.50 / 120




Nothing but the best!

• 4 precision steel ball-bearings for ultra-smooth running.
• Dynamic light metal spool for long-distance casting with a push-button release.
• Anti-Vibro A.V.S. system for full stabilization.
• Smooth action screw gear made of bronze and steel for lifelong functionality.
• Patented D.A.M. special lifting gear (Pat. DE 4035 846) for perfectly even line lay.
• Large, hard-chromium-plated line pick-up with a heavy-duty PTFE bearing.
• Pressure spring for bail arm adjustment (Long Life Spring System).
• Quick Snap crank folding system.
• Adjustable for right/left hand operation.
• Disengageable, silent anti-reverse switch.

Good ideas from D.A.M. for more fishing pleasure and success!The M.D.S. Drag System

The systems's special magnets are housed in a transparent, heavy-duty material which is barely touched by the adjacent clutch disk.

The red lines indicate the pathways of the magnetic fields.

The spool's hole pattern means that less material is used for construction of the reel, thus reducing the spool's natural inertia and supporting a perfectly smooth movement of the spool.

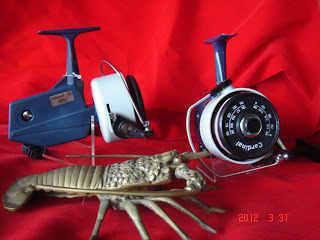

Cardinal 60 dan Cardinal 70

FLO-LINE LOMYER USA

Buatan Lou Meyer Co...Kenosha, wis.

Buatan Tahun 1948

Macam pengasah pensil
